This is the page for Ring Shooter.

What is it?

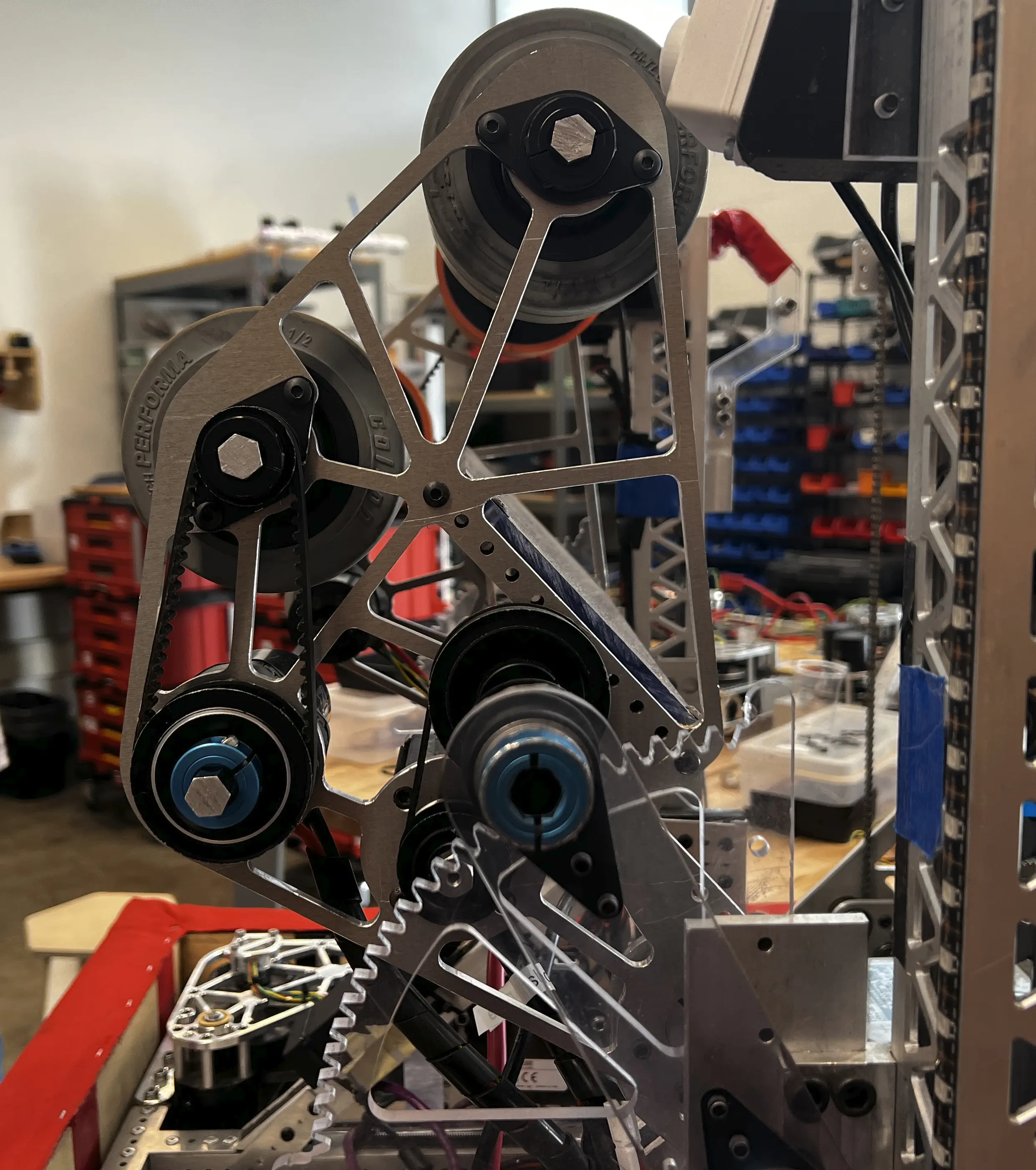

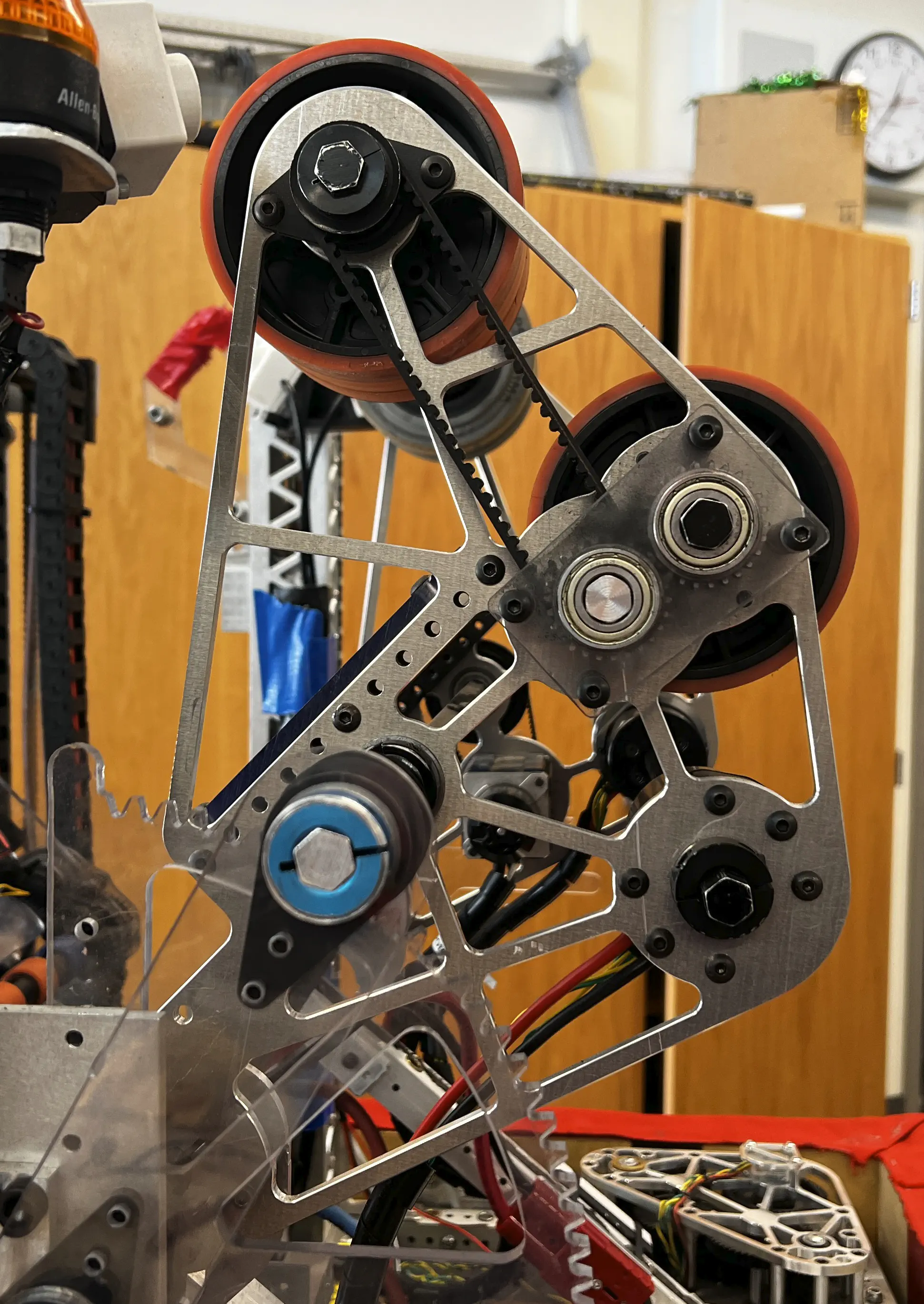

This is an aluminum plate machined out of aluminum for the shooter of our offseason 2024 2024 FRC robot.

CAD

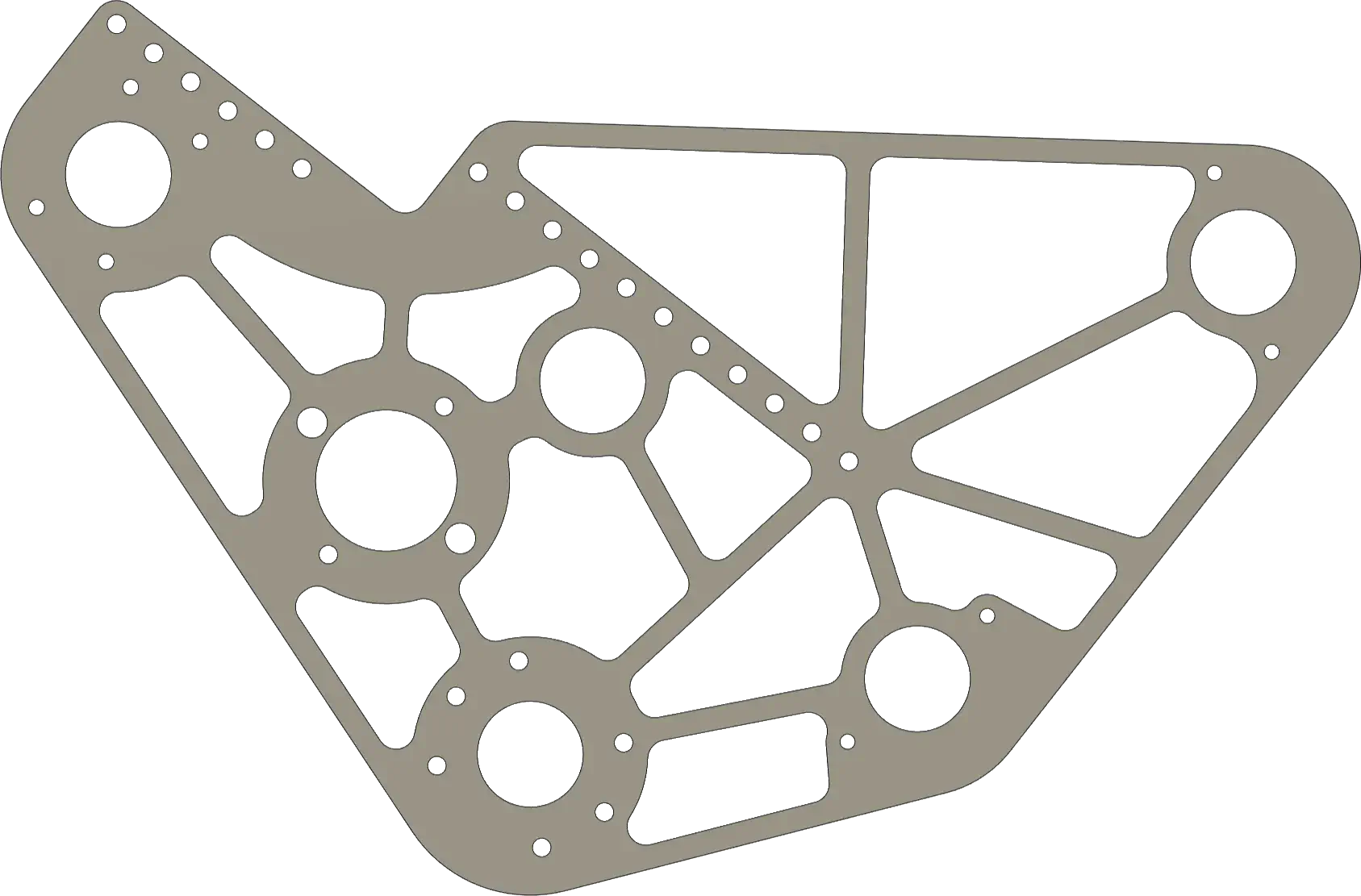

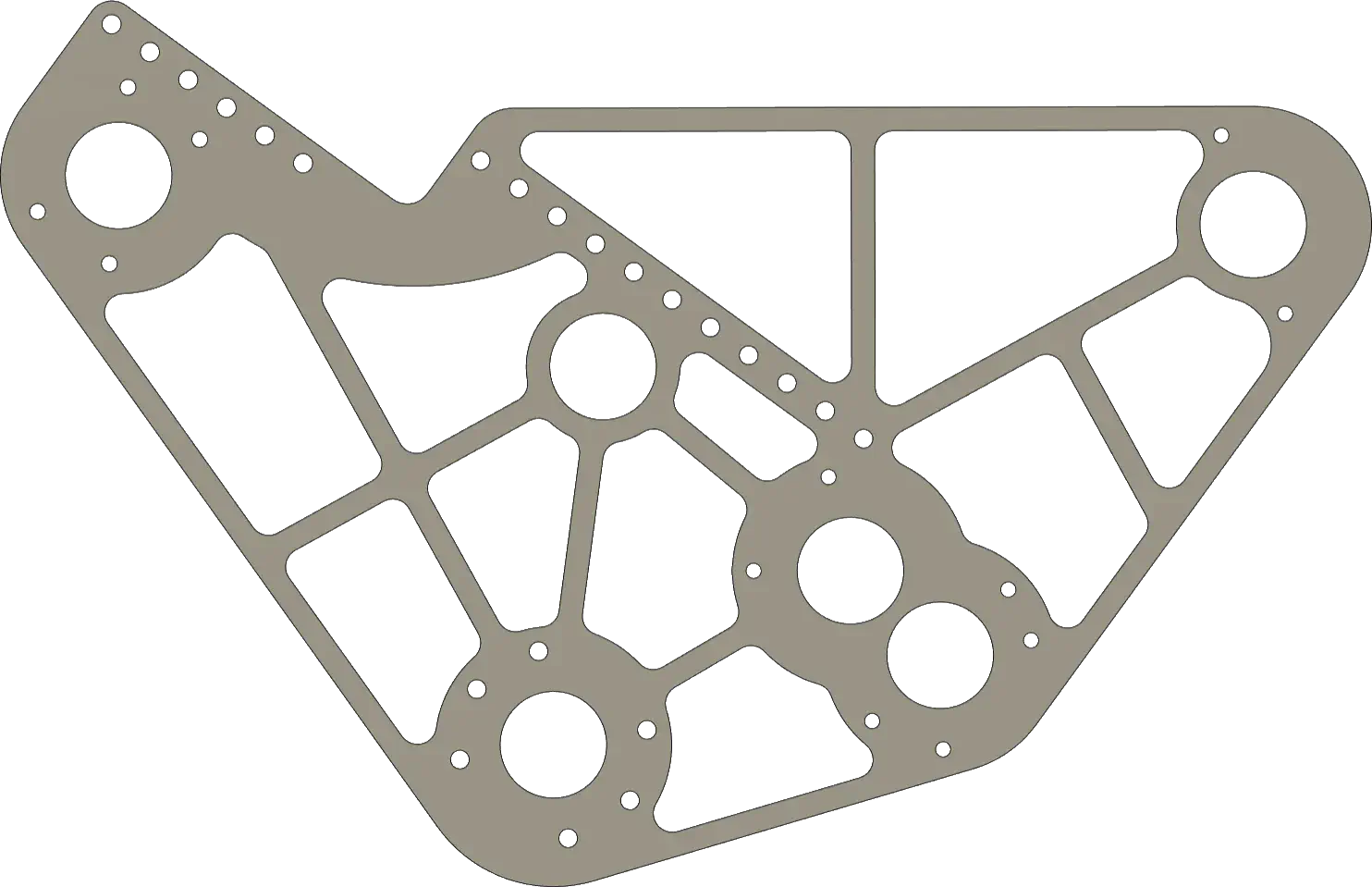

The plates were designed in Fusion. At first glance, the sides look the same, but they are different.

CAM

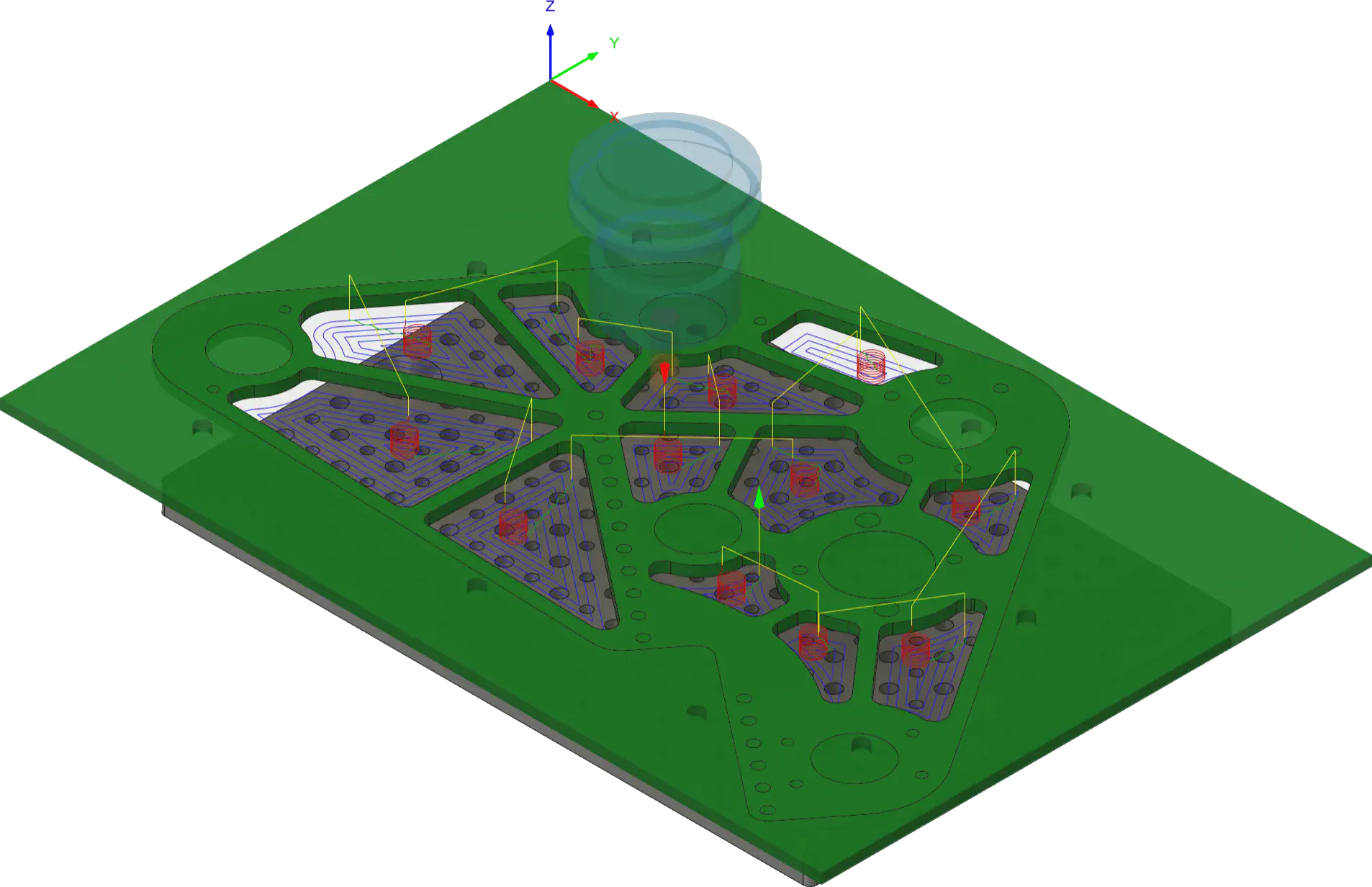

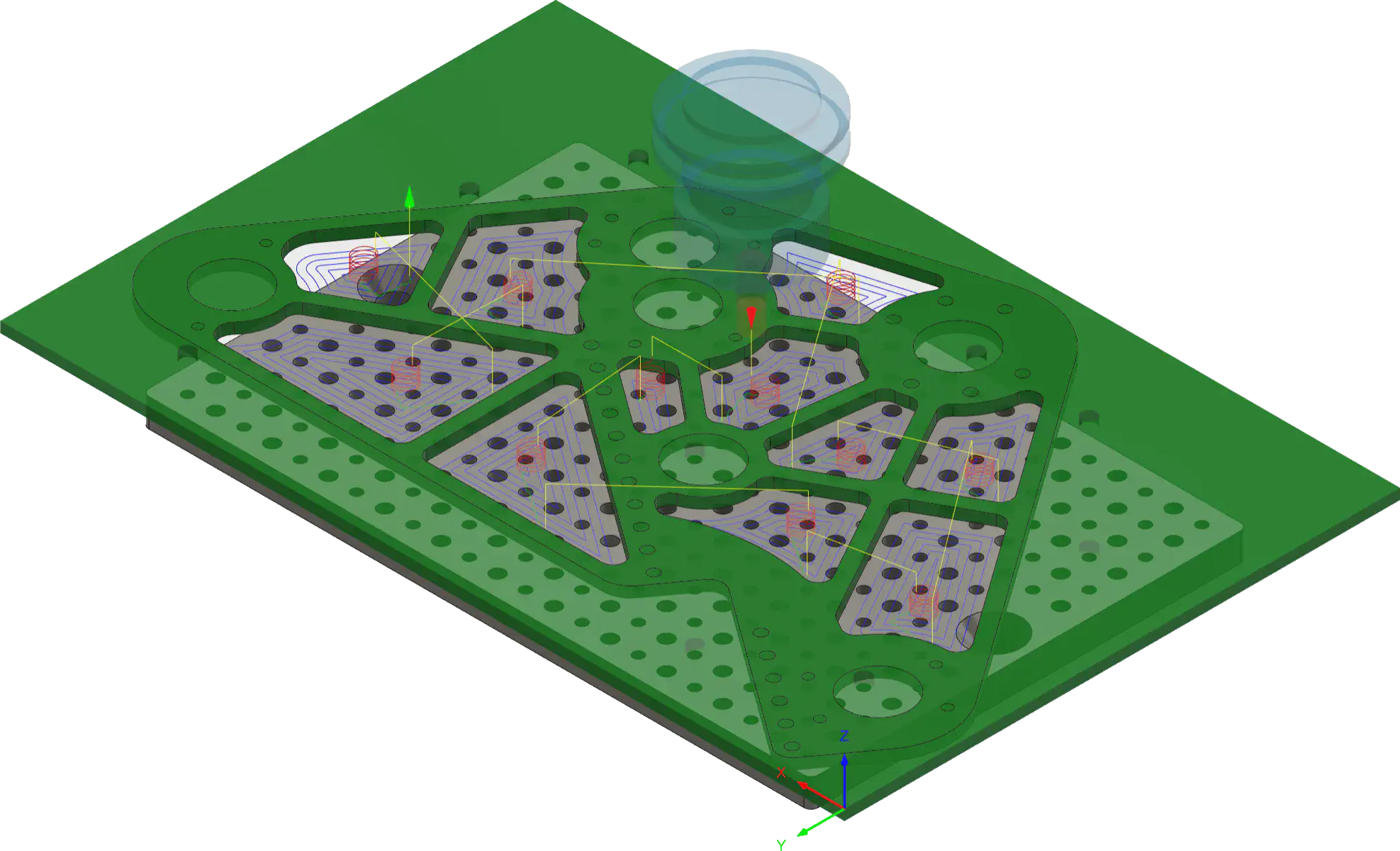

The toolpaths were also created in Fusion to be run on the CNC machine.

The stock was held down using a custom fixture plate. Holes are drilled into the stock where screws can be threaded into the fixture plate to hold down the stock. The hole drilling was done in the first setup.
